Our yacht lettering styles are all high standard finishes. Choose from our wide choice of 3D yacht lettering. Contact us for expert marine sign guidance and help choosing the right lettering for your yacht name logo.
| Fascia Letter | 8mm acrylic |
| Secondary Layer | – |
| Illuminated Layer | 10mm light-diffusing acrylic |
| Backing Trim | – |
| Typical Letter Height | ~100mm – 300mm+ |
| Available LED Colours |  |
| Typical Vessel Size | ~5m – 15m |
| Fixing Method | Thru-bolt (with or without acrylic spacers) |
| Warranty | 1 year parts and labour |
| Voltage Supply | 12v DC / 24v DC |
| Typical Overall Thickness | 18mm |
| Fibre Optic LED Hybrid System |
– |

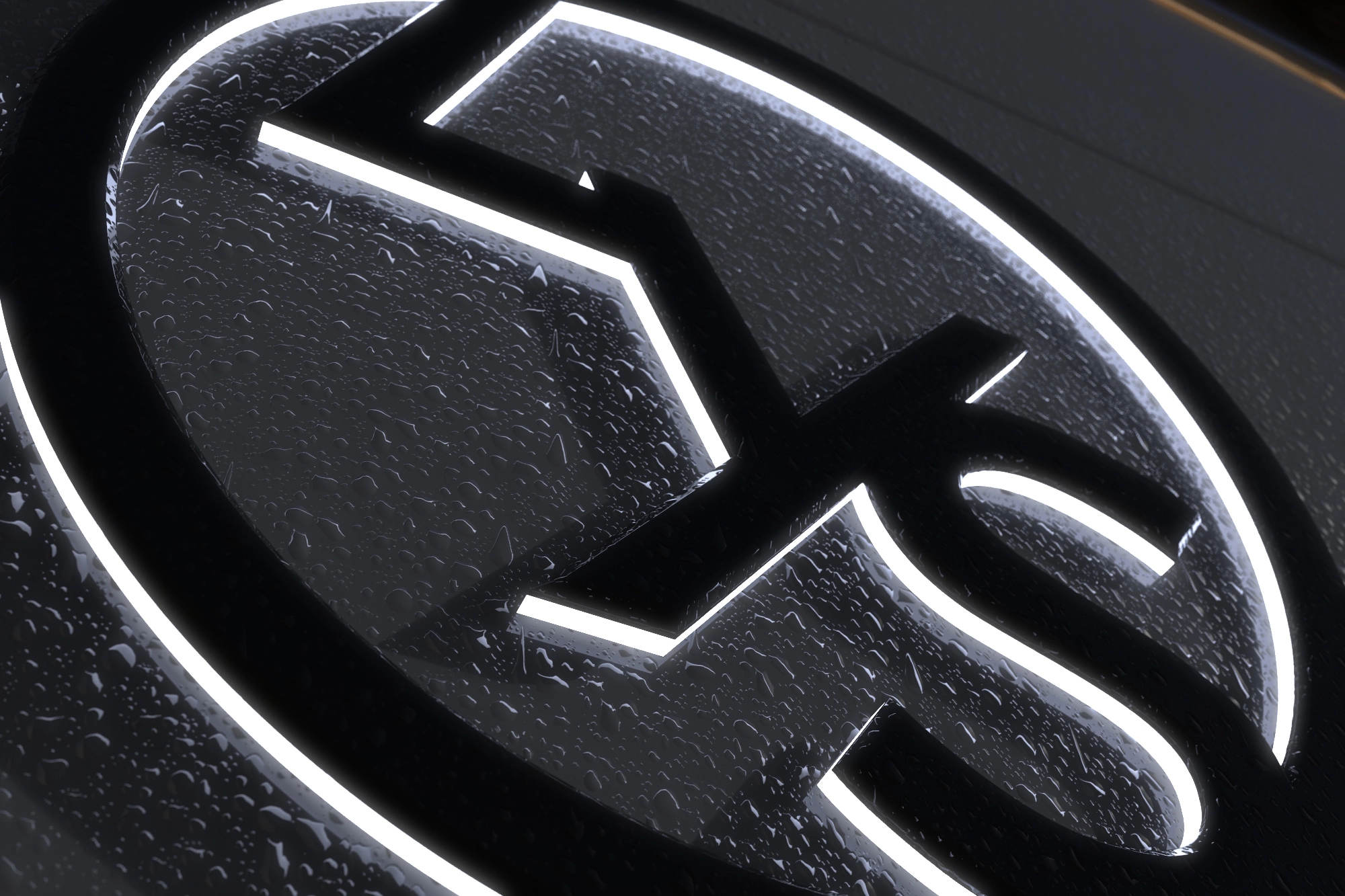

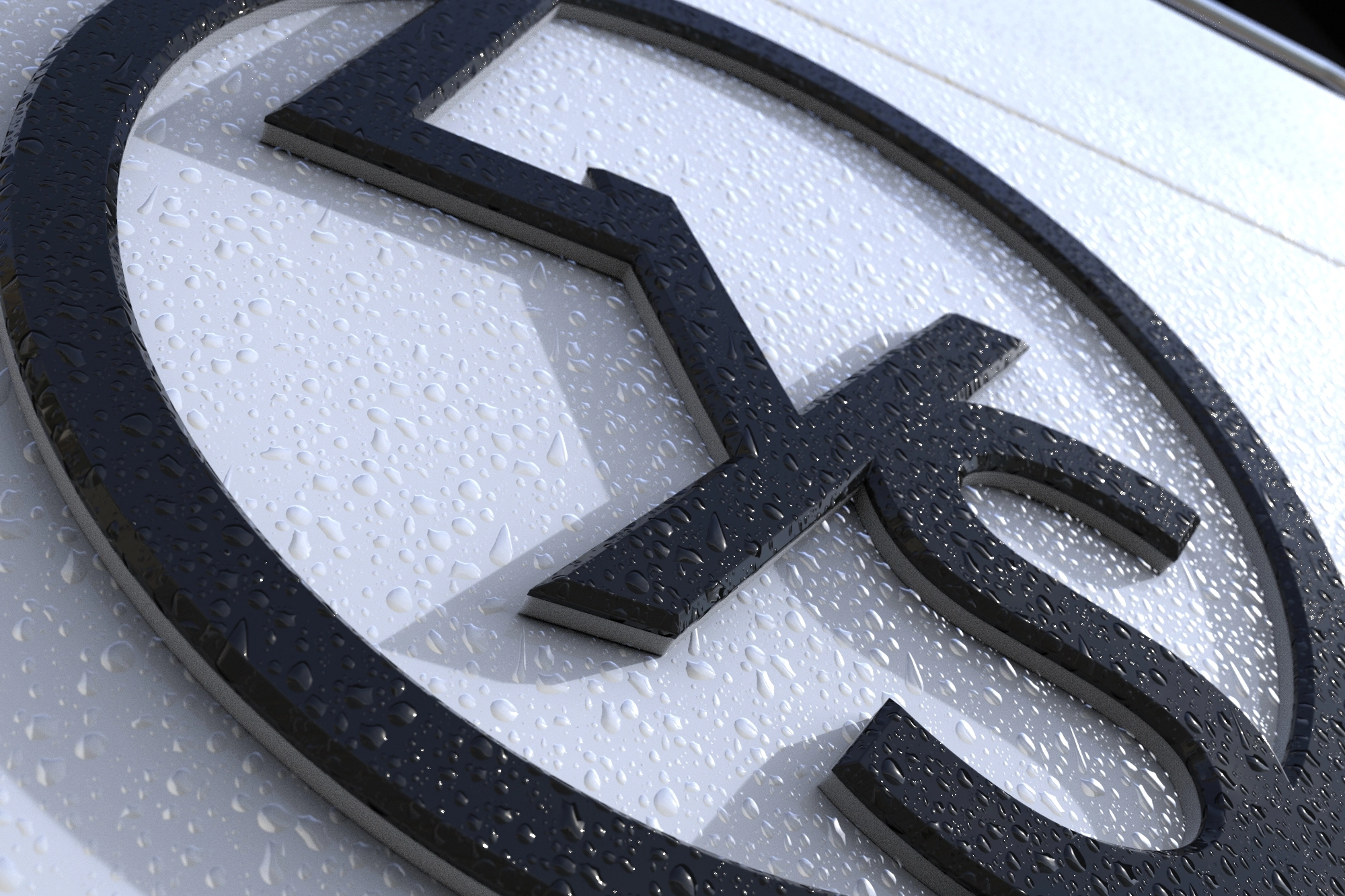

By far our most cost-effective 3D yacht letter assembly that incorporates LED illumination.
Designed to suit a budget whilst maintaining a high standard of finish and a lighting effect you would expect on a larger yacht.
Available from 5mm thick right up to 50mm thick. Yacht letters can be gloss or matte acrylic or even painted to match a specific RAL colour or paint code.
Letters are backed with a 10mm thick, light-diffusing opal plexiglass as standard and fronts can be bevelled as an option.
NIGHT MODE: LED Colour – 6000K Crisp Cool White
| Fascia Letter | 2mm super mirror-polished 316L stainless steel |
| Secondary Layer | – |
| Illuminated Layer | 10mm light-diffusing acrylic |
| Backing Trim | 3mm gloss black / white acrylic |
| Typical Letter Height | ~100mm – 300mm+ |
| Available LED Colours | |
| Typical Vessel Size | ~5m – 25m |
| Fixing Method | Thru-bolt (with or without acrylic spacers) |
| Warranty | 18 months parts and labour |
| Voltage Supply | 12v DC / 24v DC |
| Typical Overall Thickness | 15mm |
| Fibre Optic LED Hybrid System |
– |

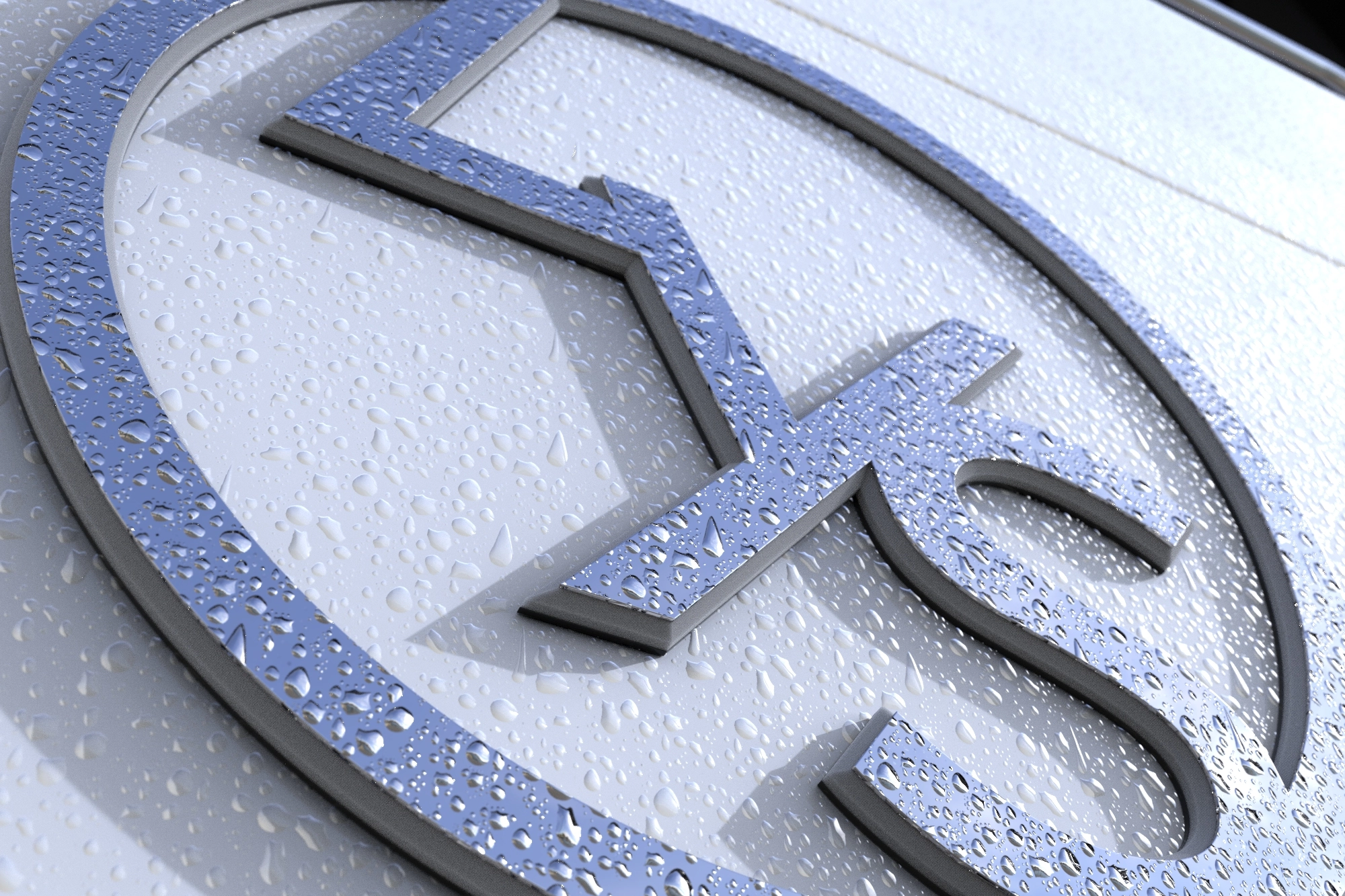

Simple lines with minimal surface protrusion. A popular style synonymous with the marine and superyacht industry. An ideal choice for smaller production boats around 70ft-80ft where swim platform space is minimal and letters are of a smaller scale.
The 316L polished stainless steel top letter is backed with 10mm thick, light-diffusing opal plexiglass offering spotless halo illumination.
The stainless steel front letter is supplied as 2mm thick as standard or 4mm as optional. The opal backing can be bevelled as an optional extra.
NIGHT MODE: LED Colour – 3000k Warm White
| Fascia Letter | 4mm super mirror-polished 316L stainless steel |
| Secondary Layer | – |
| Illuminated Layer | 15mm light-diffusing acrylic |
| Backing Trim | 8mm gloss black / white acrylic |
| Typical Letter Height | ~200mm – 400mm+ |
| Available LED Colours |  |
| Typical Vessel Size | ~25m – 50m |
| Fixing Method | Thru-bolt (with or without 316L stainless steel spacers) / External Mounting System (EMS) |
| Warranty | 2 year parts and labour |
| Voltage Supply | 110v AC / 240v AC / 12v DC / 24v DC |
| Typical Overall Thickness | 27mm |
| Fibre Optic LED Hybrid System |
Available upon request for dip door submerging stern |

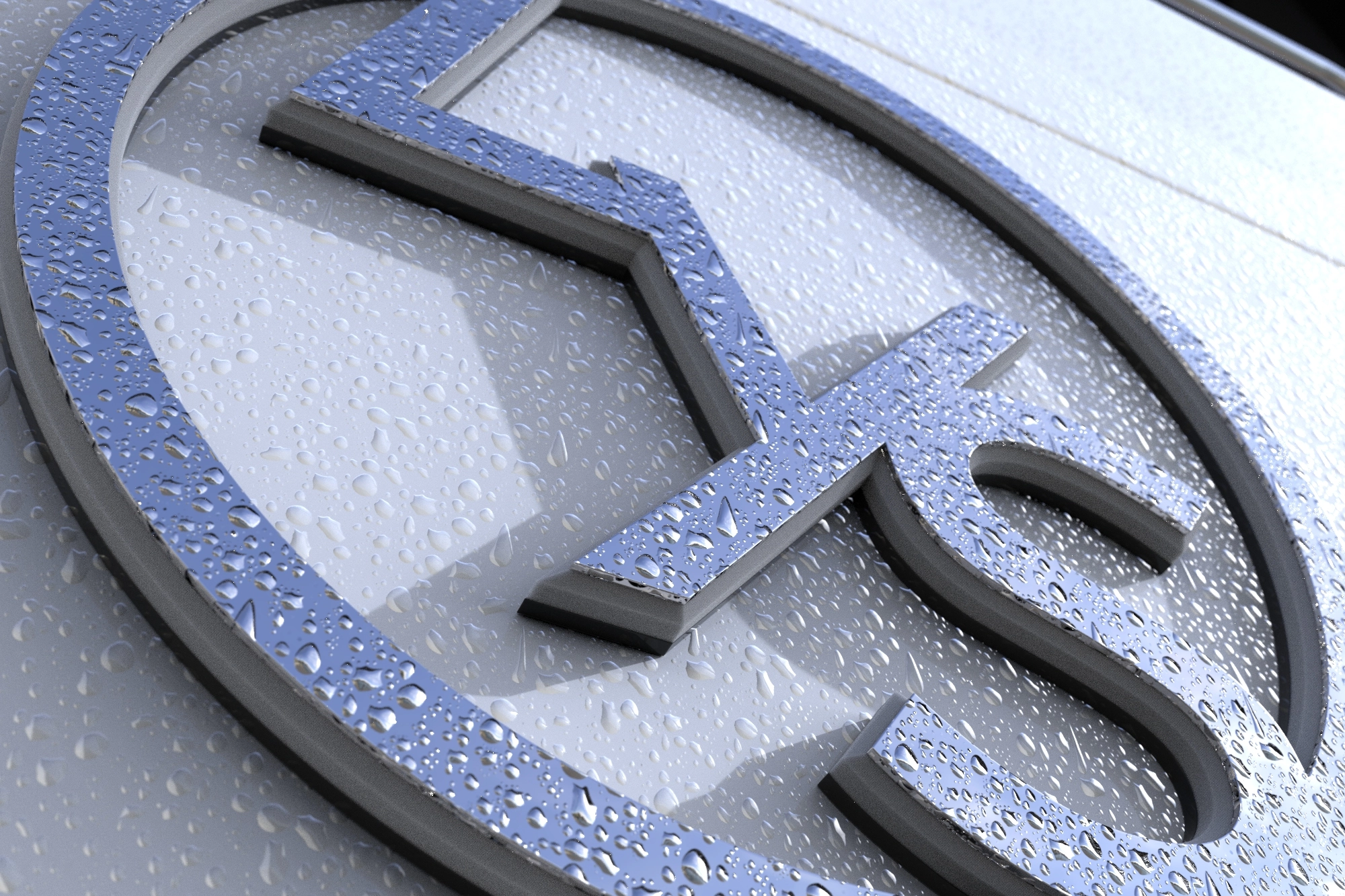

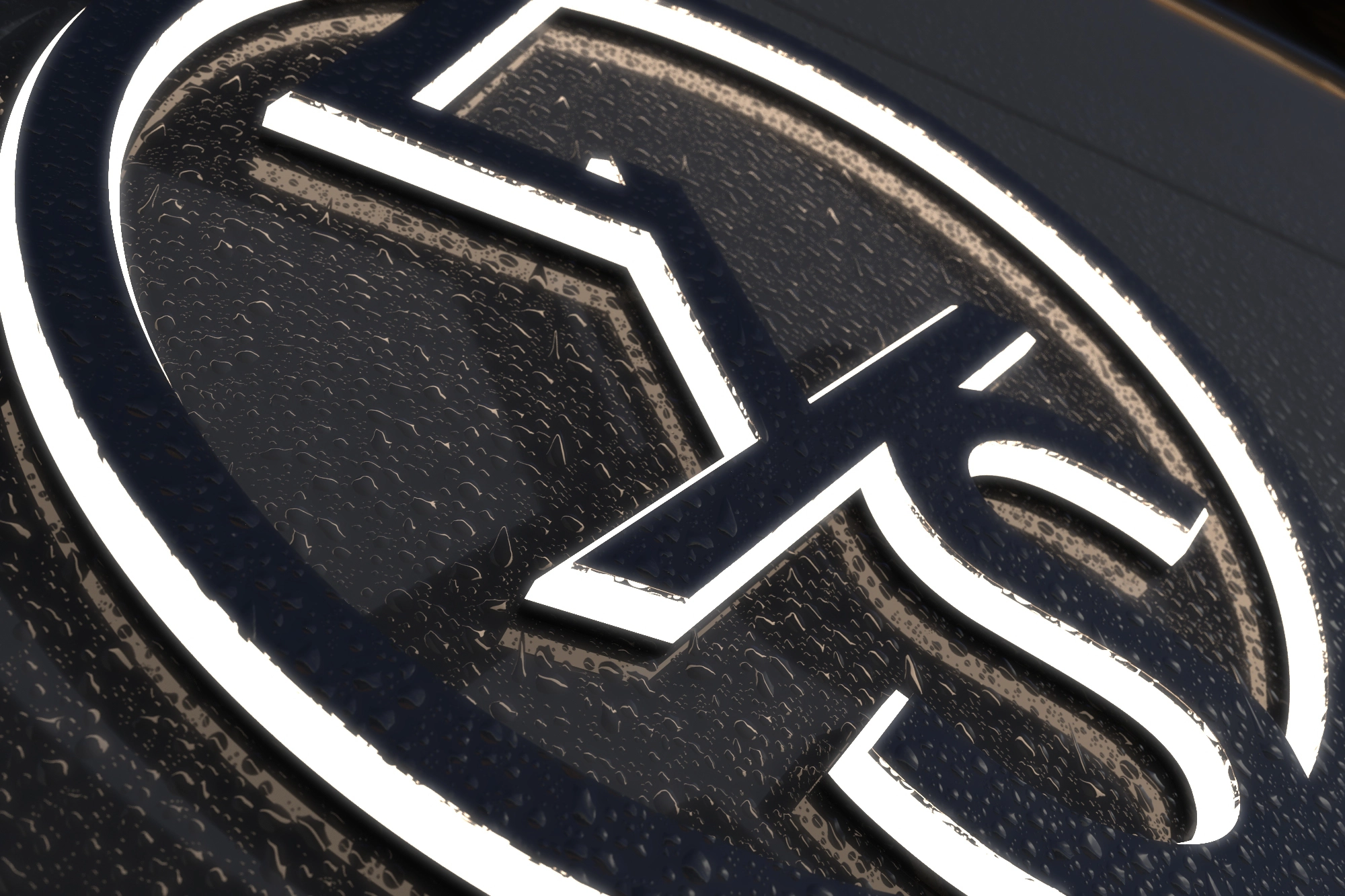

The MID-LINE range is perfectly suited to the 25m+ market where medium sized letters require a little added rigidity and flare.
Letters are supplied with 4mm thick mirror-polished stainless steel and backed with 10mm thick (flush or bevelled) light-diffusing opal plexiglass, for spotless illumination.
A gloss white/black 8mm thick acrylic trim seals the back of the letter adding extra depth, rigidity and increased definition. As a general rule, white backing is used for dark hulls and black for lighter-coloured hulls.
NIGHT MODE: LED Colour – 4000k Neutral White
| Fascia Letter | 4mm super mirror-polished 316L stainless steel |
| Secondary Layer | – |
| Illuminated Layer | 20mm light-diffusing acrylic |
| Backing Trim | 8mm gloss black / white acrylic |
| Typical Letter Height | ~250mm – 1000mm+ |
| Available LED Colours |  |
| Typical Vessel Size | ~50m – 100m+ |
| Fixing Method | Thru-bolt (with or without 316L stainless steel spacers) / External Mounting System (EMS) |
| Warranty | 2 year parts and labour |
| Voltage Supply | 110v AC / 240v AC / 12v DC / 24v DC |
| Typical Overall Thickness | 32mm |
| Fibre Optic LED Hybrid System |
Available upon request for dip door submerging stern |

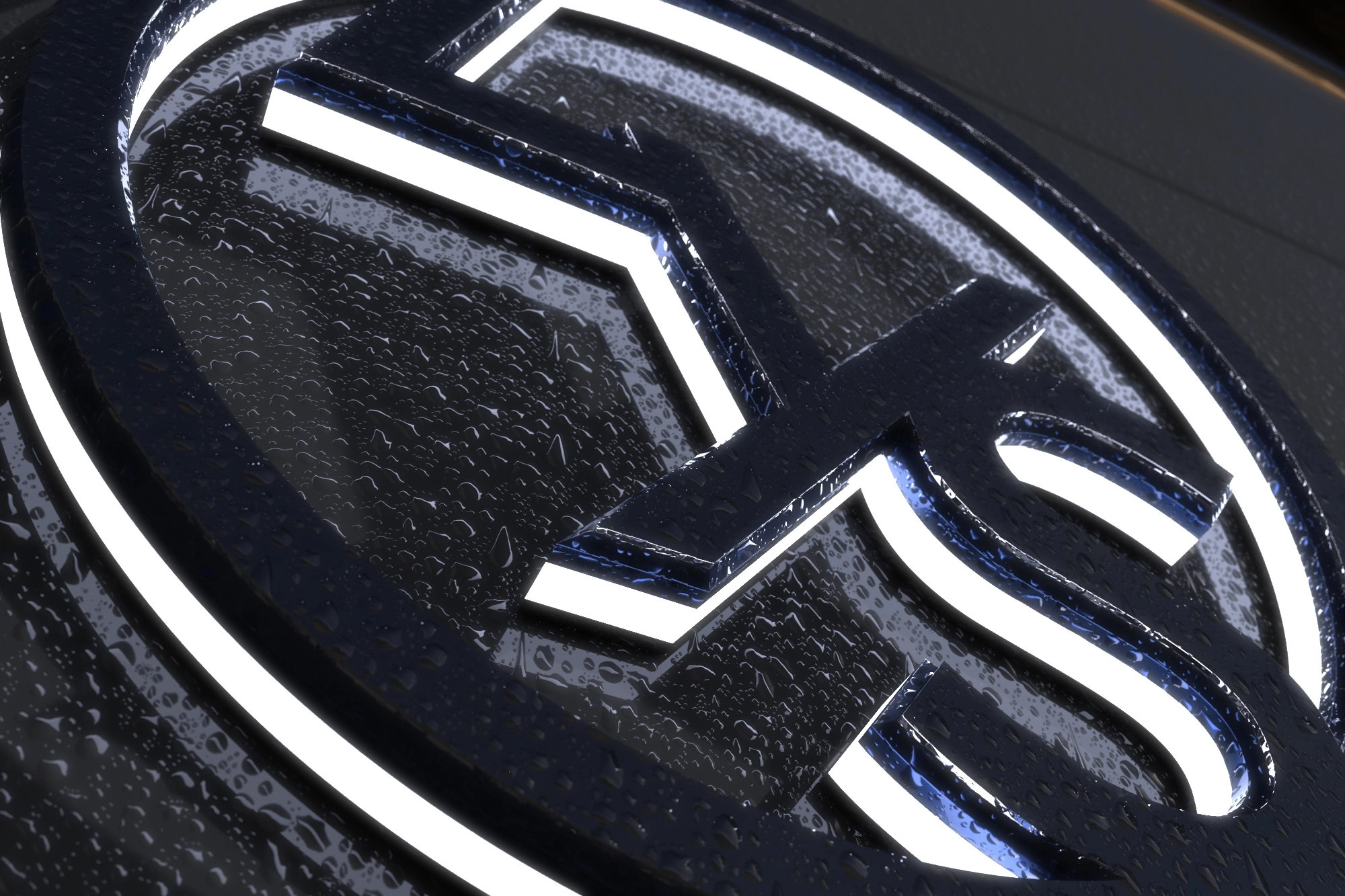

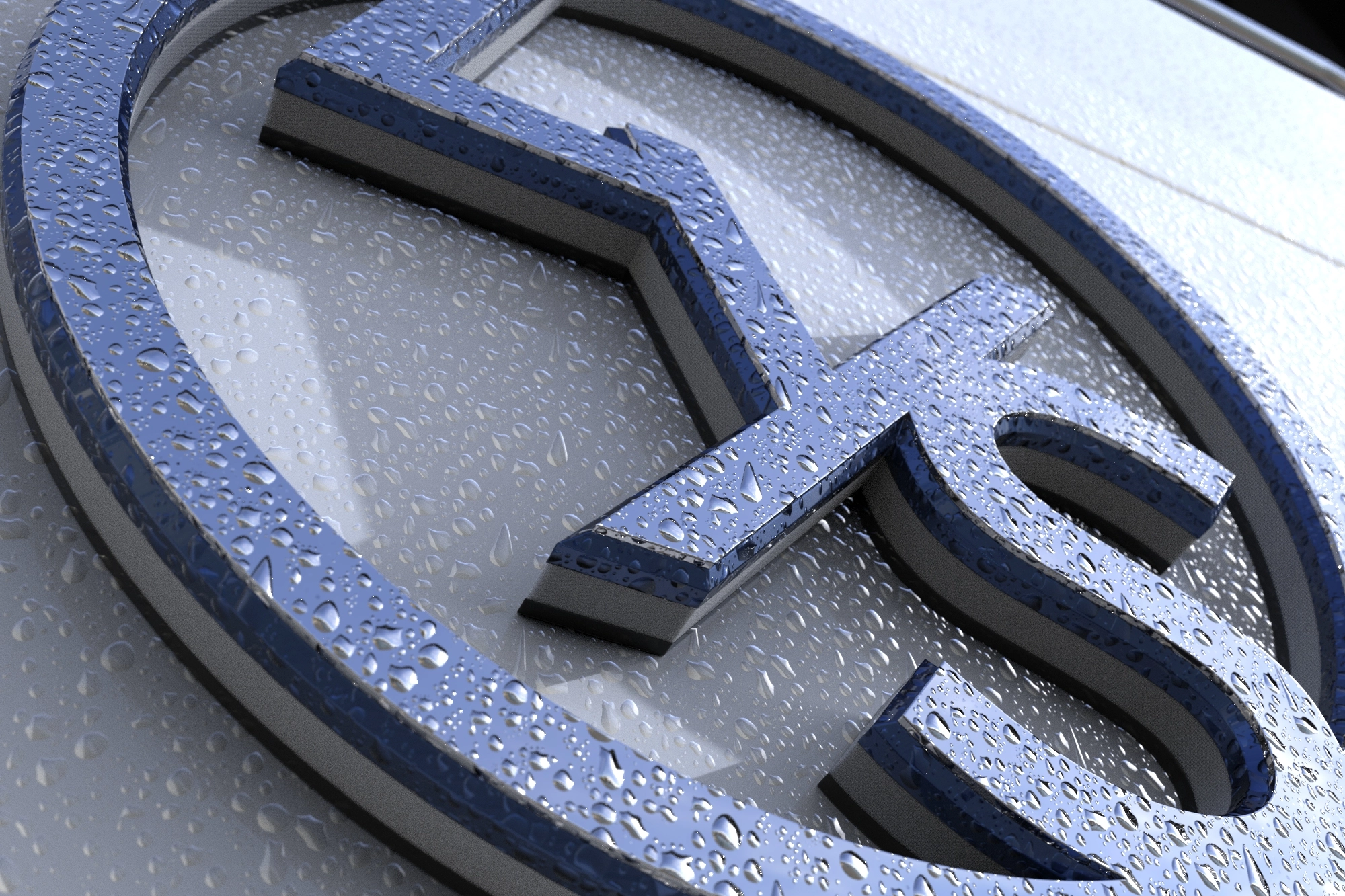

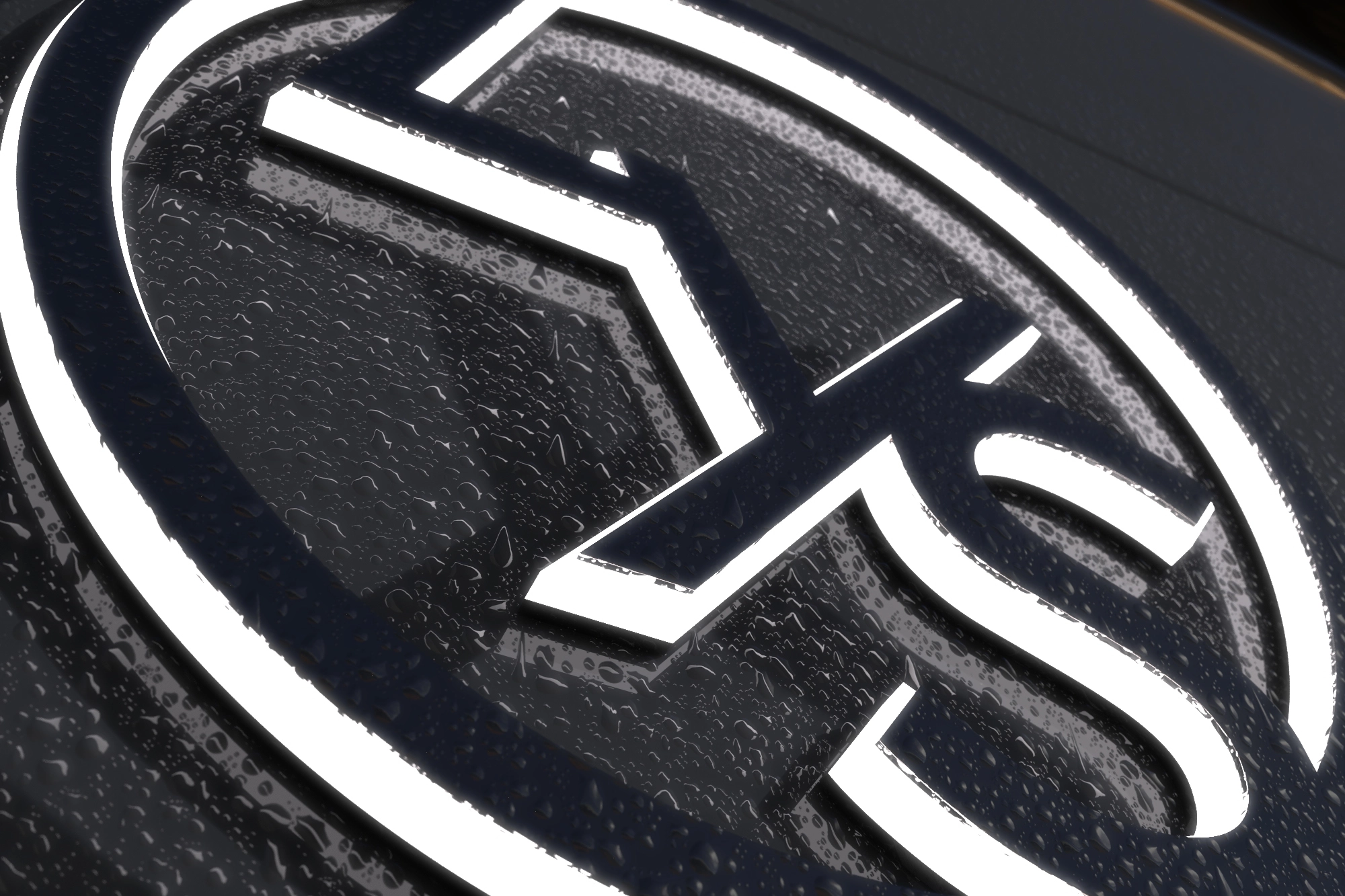

Primarily for the larger 50m+ projects with increased letter and logo sizes. Extra letter thickness gives superior rigidity and aesthetically correct proportions to the size of yacht.
A 4mm polished stainless steel top letter is laminated onto 28mm of solid machined acrylic. Comprised of 20mm flush/bevelled opal plexiglass laminated onto 8mm acrylic backing, the assembly offers spotless halo illumination.
The backing trims give beautiful letter definition, contrasting against the superstructure surface. As a general rule, white backing is used for dark hulls and black for lighter-coloured hulls.
NIGHT MODE: LED Colour – 5000k Daylight White
| Fascia Letter | 4mm super mirror-polished 316L stainless steel |
| Secondary Layer | 5mm – 20mm custom-painted acrylic |
| Illuminated Layer | 20mm light-diffusing acrylic |
| Backing Trim | 8mm gloss black / white acrylic |
| Typical Letter Height | ~250mm – 1000mm+ |
| Available LED Colours | |
| Typical Vessel Size | ~50m – 100m+ |
| Fixing Method | Thru-bolt (with or without 316L stainless steel spacers) / External Mounting System (EMS) |
| Warranty | 3 year parts and labour |
| Voltage Supply | 110v AC / 240v AC / 12v DC / 24v DC |
| Typical Overall Thickness | 37mm – 52mm |
| Fibre Optic LED Hybrid System |
Available upon request for dip door submerging stern |
Primarily for the larger 50m+ projects with increased letter and logo sizes. Extra letter thickness gives superior rigidity and aesthetically correct proportions to the size of the yacht.
A 4mm polished stainless steel top letter is mounted onto a layer of 15mm painted acrylic, which is then – in turn – laminated to 28mm of solid machined acrylic. Comprised of 20mm flush/bevelled opal plexiglass laminated onto 8mm acrylic backing, the assembly offers spotless halo illumination.
The backing trims give a beautiful letter definition, contrasting against the superstructure surface. As a general rule, white backing is used for dark hulls and black for lighter-coloured hulls.
NIGHT MODE: LED Colour – 6000k Crisp Cool White
| Fascia Letter | 5mm – 20mm custom-painted acrylic |
| Secondary Layer | 4mm super mirror-polished 316L stainless steel |
| Illuminated Layer | 20mm light-diffusing acrylic |
| Backing Trim | 8mm gloss black / white acrylic |
| Typical Letter Height | ~250mm – 1000mm+ |
| Available LED Colours | |
| Typical Vessel Size | ~50m – 100m+ |
| Fixing Method | Thru-bolt (with or without 316L stainless steel spacers) / External Mounting System (EMS) |
| Warranty | 3 year parts and labour |
| Voltage Supply | 110v AC / 240v AC / 12v DC / 24v DC |
| Typical Overall Thickness | 37mm – 52mm |
| Fibre Optic LED Hybrid System |
Available upon request for dip door submerging stern |
Primarily for the larger 50m+ yacht projects with increased letter and logo sizes. Extra letter thickness gives superior rigidity and aesthetically correct proportions to the size of the yacht.
A 15mm painted acrylic top letter is mounted to a layer of 4mm polished stainless steel, which – in turn – is then laminated to 28mm of solid machined acrylic. Comprised of 20mm flush/bevelled opal plexiglass laminated onto 8mm acrylic backing, the assembly offers spotless halo illumination.
The backing trims give a beautiful letter definition, contrasting against the superstructure surface. As a general rule, white backing is used for dark hulls and black for lighter-coloured hulls.
NIGHT MODE: LED Colour – 4000k Neutral White
| Fascia Letter | Most designs, materials and thicknesses available upon request |
| Secondary Layer | Most designs, materials and thicknesses available upon request |
| Illuminated Layer | 15mm – 30mm light-diffusing acrylic |
| Backing Trim | 8mm – 30mm gloss black / white / custom-painted acrylic |
| Typical Letter Height | ~250mm – 1000mm+ |
| Available LED Colours | |
| Typical Vessel Size | ~50m – 100m+ |
| Fixing Method | Thru-bolt (with or without 316L stainless steel spacers) / External Mounting System (EMS) |
| Warranty | Available on request |
| Voltage Supply | 110v AC / 240v AC / 12v DC / 24v DC |
| Typical Overall Thickness | Dependent on material selection |
| Fibre Optic LED Hybrid System |
Available upon request for dip door submerging stern |

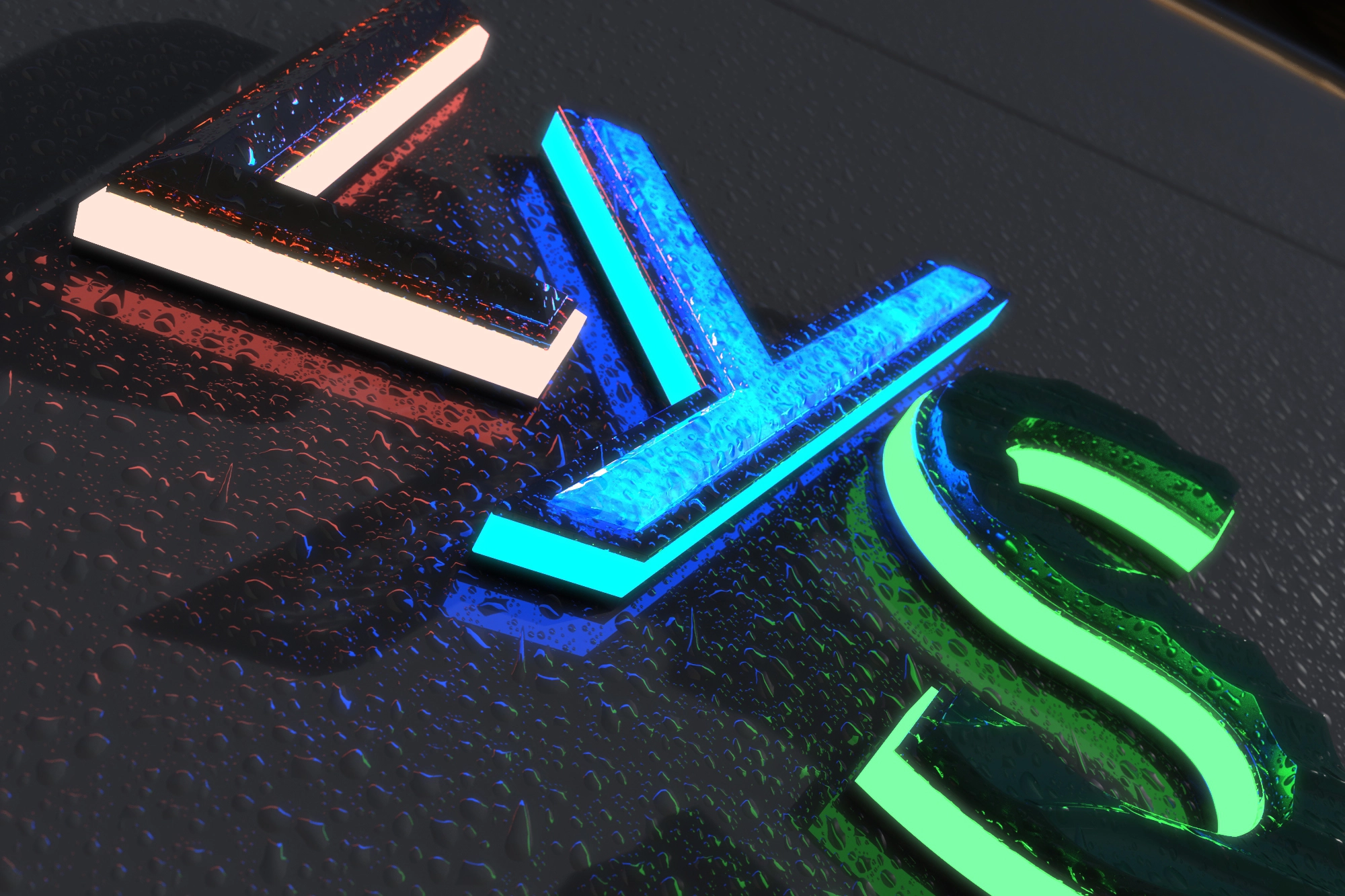

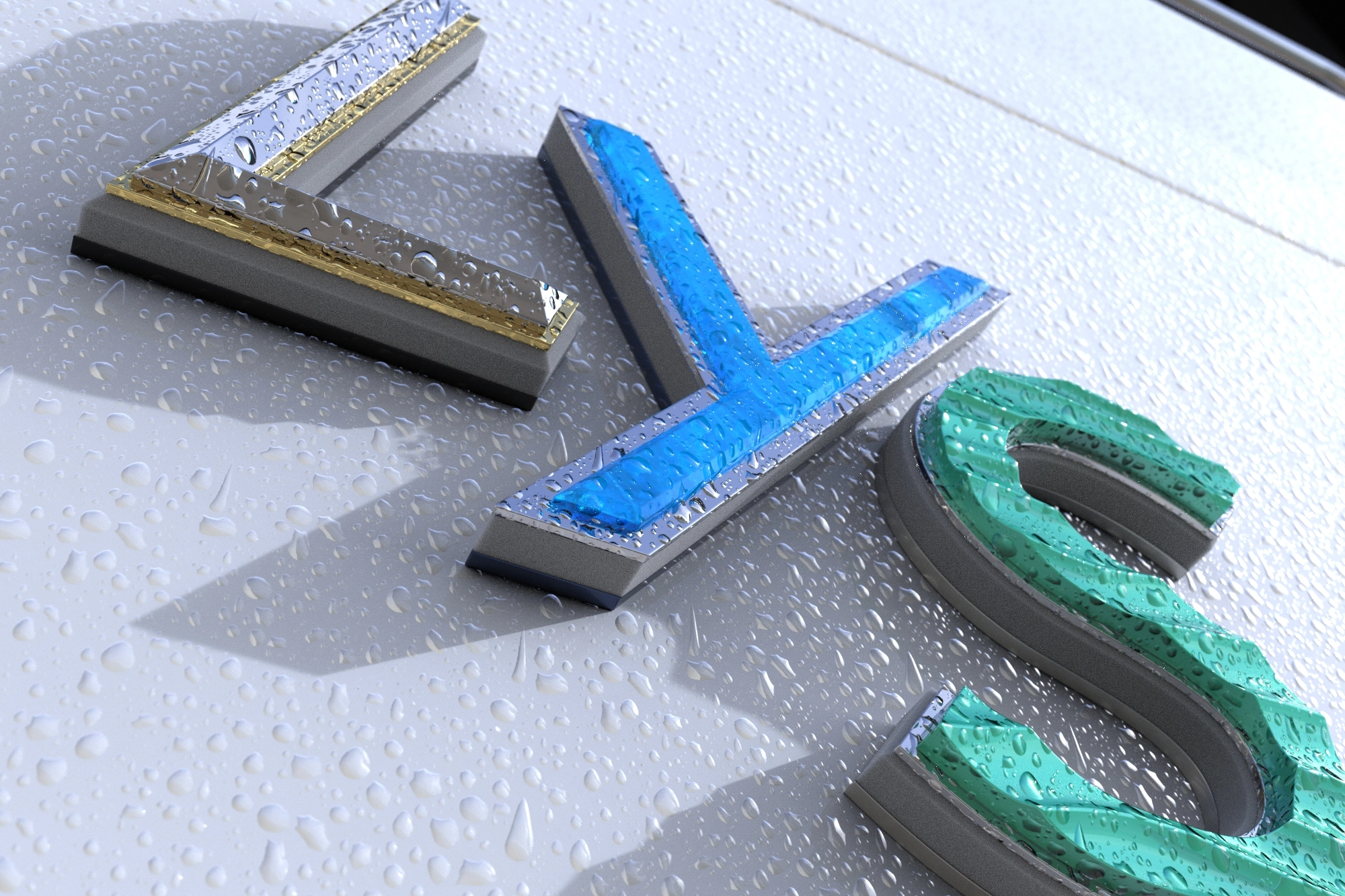

Some prestigious projects often require larger-than-standard letters, or that little extra something for added character and esteem. Custom-Line products are machined from a wide range of high-end materials, including – but not limited to – stainless steel, acrylic, carbon fibre and even solid iroko.
If you can think it, we can almost certainly create it.
Our Custom-Line range allows you to indulge your creativity with a variety of CNC-cut letter profiles, shapes and surface finishes to suit even the most specific of tastes.
And coupled with a myriad of luxury marine-grade finishes – from specific paint codes to PVD coating – you can really let your imagination run wild.
NIGHT MODE: LED Colour – RGB-W
